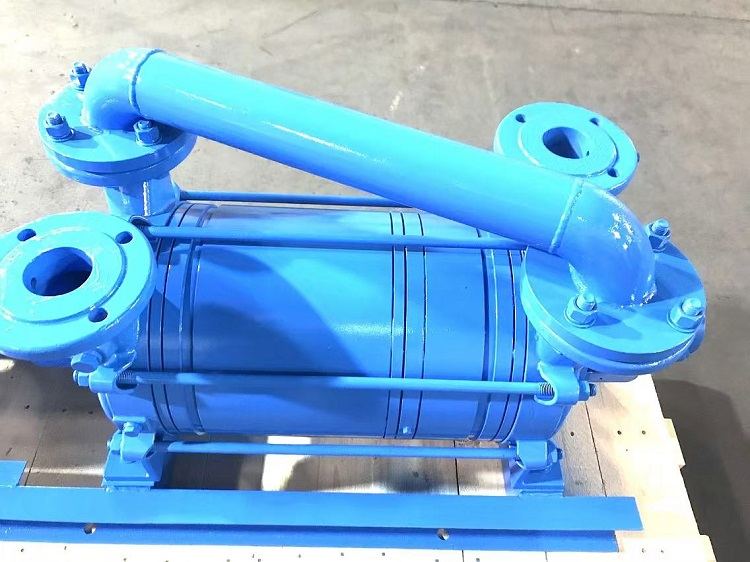

2SK Two-Stage Water Ring Vacuum Pumps
Dimensions and flange positions are verified against the original pump before a quotation is issued.
Two-stage SK-class water ring vacuum pumps for deeper vacuum on dry, non-corrosive gases (SK & 2SK types).
Model specifications
7 unique models · 7 configurations. Open a model to compare its available configurations.
2SK-1.5Capacity90 m³/hUlt. pressure43.25 mbarMotor range4 kWQuote this model →
| Model | Capacity (m³/h) | Ult. pressure (mbar) | Motor (kW) | Speed (rpm) | Port | Weight (kg) |
|---|---|---|---|---|---|---|
| 2SK-1.5 | 90 | 43.25 | 4 | 1,440 | inlet/outlet 40 mm | 140 |
2SK-3Capacity180 m³/hUlt. pressure43.25 mbarMotor range7.5 kWQuote this model →
| Model | Capacity (m³/h) | Ult. pressure (mbar) | Motor (kW) | Speed (rpm) | Port | Weight (kg) |
|---|---|---|---|---|---|---|
| 2SK-3 | 180 | 43.25 | 7.5 | 1,440 | inlet/outlet 40 mm | 180 |
2SK-6Capacity360 m³/hUlt. pressure33.25 mbarMotor range15 kWQuote this model →
| Model | Capacity (m³/h) | Ult. pressure (mbar) | Motor (kW) | Speed (rpm) | Port | Weight (kg) |
|---|---|---|---|---|---|---|
| 2SK-6 | 360 | 33.25 | 15 | 1,460 | inlet/outlet 50 mm | 250 |
2SK-12Capacity720 m³/hUlt. pressure33.25 mbarMotor range22 kWQuote this model →
| Model | Capacity (m³/h) | Ult. pressure (mbar) | Motor (kW) | Speed (rpm) | Port | Weight (kg) |
|---|---|---|---|---|---|---|
| 2SK-12 | 720 | 33.25 | 22 | 970 | inlet/outlet 100 mm | 400 |
2SK-20Capacity1,200 m³/hUlt. pressure33.25 mbarMotor range45 kWQuote this model →
| Model | Capacity (m³/h) | Ult. pressure (mbar) | Motor (kW) | Speed (rpm) | Port | Weight (kg) |
|---|---|---|---|---|---|---|
| 2SK-20 | 1,200 | 33.25 | 45 | 740 | inlet/outlet 125 mm | 550 |
2SK-30Capacity1,800 m³/hUlt. pressure33.25 mbarMotor range55 kWQuote this model →
| Model | Capacity (m³/h) | Ult. pressure (mbar) | Motor (kW) | Speed (rpm) | Port | Weight (kg) |
|---|---|---|---|---|---|---|
| 2SK-30 | 1,800 | 33.25 | 55 | 741 | inlet/outlet 125 mm | 70 |
2SK25Capacity790 m³/hUlt. pressure33 mbarMotor range45 kWQuote this model →
| Model | Capacity (m³/h) | Ult. pressure (mbar) | Motor (kW) | Speed (rpm) | Port | Weight (kg) |
|---|---|---|---|---|---|---|
| 2SK25 | 790 | 33 | 45 | — | 100 mm | 50 |
How we verify a bolt-on replacement
The quotation follows a drawing-led check before you place an order.
Send the original model
Share the nameplate model and your required duty.
We check the interface
We verify flange size and orientation, foundation bolt pattern and shaft height, then send the equivalent model and outline drawing.
You confirm before quotation
You review the drawing; after confirmation, we prepare the quotation.
What you get with the quotation
Tell us the duty point (capacity, suction pressure, seal-liquid temperature) and we return, normally within one working day:
- Performance curve — capacity against suction pressure at your seal-liquid temperature — not a catalogue figure
- Dimensional outline drawing — flanges, bolt pattern, shaft height, so you can check the fit before ordering
- Material specification — wetted-part materials for your gas and liquid, with certificates on delivery
- Utility figures — seal-liquid flow and motor rating, for sizing the supply and the starter
If the drawing does not match your original, we say so and do not quote.
Confirm the drawing before you order
Send the original model and duty. We will return the equivalent selection, outline drawing and performance curve with the quotation.
